Ethernet Switch
Leading Exporters, Wholesaler, Retailer, Trader and Distributor of IES-1042FX - Industrial Slim Type 5-port Unmanaged Ethernet Switch, IES-1050 Industrial 5-port Unmanaged Ethernet Switch, IES-1062FX Series Industrial 8-port Unmanaged Ethernet Switch, IES-1080A Industrial Slim Type Unmanaged Ethernet Switch, IES-1142P Industrial 16-Port Unmanaged Ethernet Switch, IES-1160 Industrial 16-Port Unmanaged Ethernet Switch, IES-1162GC Industrial 18-Port Unmanaged Ethernet Switch, IES-162FX-L Series Industrial 8-Port Unmanaged Ethernet Switch, IES-180B Industrial 8-Port Mini Type Unmanaged Ethernet Switch, IES-C1050 Industrial 5-port Mini Type Unmanaged Ethernet Switch, IES-C1050 Industrial 5-Port Unmanaged Ethernet Switch, IES-C1080 Industrial 8-Port Unmanaged Ethernet Switch Series, IGPS-1082GP Series Industrial 10 Port Unmanaged Gigabit POE Ethernet Switch, IGS-1042GPA Industrial 6-Port Slim Type Unmanaged Gigabit Ethernet Switch, IGS-1050A Industrial Slim Type 5-Port Unmanaged Gigabit Ethernet Switch, IGS-C1050 Industrial 5-Port Unmanaged Gigabit Ethernet Switch, Silbo - XA-82-2 Unmanaged POE Switch, Silbo - XB-82-2 Unmanaged Ethernet Switches, Silbo XD-50-1 Unmanaged Ethernet Switches, Teltonika - SWM280 POE Managed Switch, Teltonika -Tsw114 Gigabit Din Rail Ethernet Switch and Teltonika RUT301 Industrial Ethernet Router from Delhi.
| Business Type | Supplier, Retailer, Trader, Distributor |
| Brand Name | Oring |
| Color | Black |
| Operating Temperature | -40 To 75 DegreeC (-40 To 167 DegreeF) |
| Weight | 378 Grams |
| Area Network Type | LAN Capable |
| Dimensions | 26.1(W) X 94.9(D) X 144.3(H) Mm |
| Operating Humidity | 5% To 95% Non-condensing |

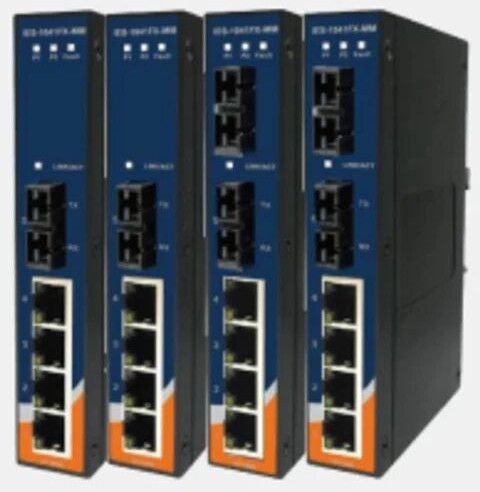

IES-1041FX/1042FX series are unmanaged Ethernet switches with 4 x 10/100Base-T(X) and 100Base-FX ports. IES-1041FX/1042FX series support redundant power inputs, configurable relay output alarm and rigid IP-30 housing. In addition, the wide operating temperature range from -40 to 75°C can satisfy most of operating environment.
Additional Information:
- Item Code: IES-1041FX
- Production Capacity: 100 Pieces
- Delivery Time: Stock Ready
- Packaging Details: Comes in Corrugated Box.
| Business Type | Supplier, Retailer, Trader, Distributor |
| Operating Temperature | -10 To 60 DegreeC (14 To 140 DegreeF) |
| Color | Black |
| Switch Type | Unmanaged |
| Number Of Ports | 5 Ports |
| Port Speed | 10/100 Mbps |
| PoE Support | Non PoE |
| Mounting Type | DIN Rail |
| Area Network Type | LAN Capable |
| Device Type | Ethernet Switch |
| Uplink Ports | No Uplink |
| Fiber Ports | No Fiber Port |
| Protection Rating | IP65 |
| IP Rating | IP-30 |

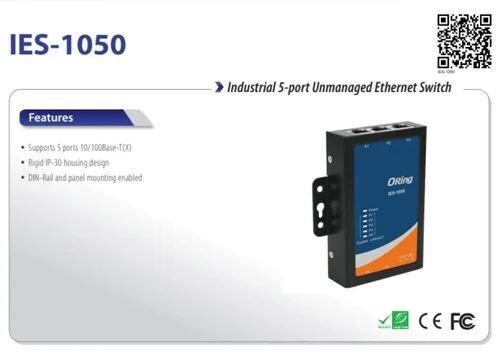

IES-1050 is unmanaged Ethernet switch with 5x10/100Base-T(X) ports. With very compact size of housing, you can install IES-1050 easily. In addition, IES-1050 is with rigid IP-30 housing design and can operate under harsh environment. and can satisfy most requirement of operation.
Additional Information:
- Item Code: IES-1050
- Production Capacity: 100 Pieces
- Delivery Time: Stock Ready
- Packaging Details: Comes in Corrugated Box.
| Business Type | Supplier, Retailer, Trader, Distributor |
| Weight | 680 Grams |
| Area Network Type | LAN Capable |
| Power Consumption | 8 Watts |
| Dimensions | 52(W) X 106.1(D) X 144.3(H) Mm |
| Ethernet Standard | IEEE 802.3 For 10Base-T, IEEE 802.3u For 100Base-TX And 100Base-FX, IEEE 802.3ab For 1000Base-T |
| IP Rating | IP-30 |

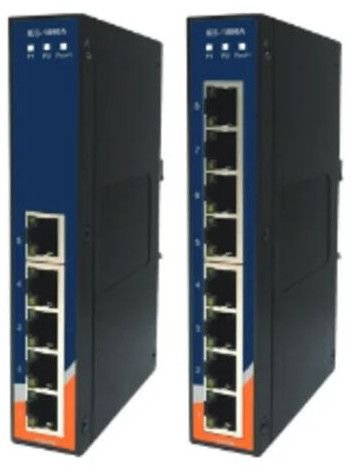

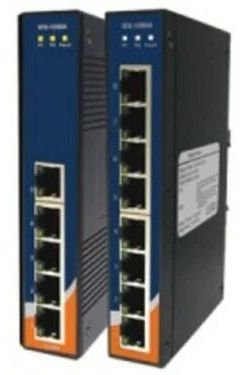

IES-1080/1062 series are unmanaged Ethernet switches with 6x10/100Base-T(X) and 2x100Base-FX, 10/100/1000Base-T(X), 1000Base-SX or 1000Base- LX ports. IES-1080/1062 series support redundant power input, relay output alarm, and surge protection. The wide operating temperature range from -40°C to 70°C can satisfy most of operating environments.
Additional Information:
- Item Code: IES-1062FX
- Production Capacity: 100 Pieces
- Delivery Time: Stock Ready
- Packaging Details: Comes in Corrugated Box.
| Business Type | Supplier, Retailer, Trader, Distributor |
| Operating Temperature | -40 To 75°C (-40 To 167°F) |
| Weight | 391 Grams |
| Color | Black |
| Area Network Type | LAN Capable |
| Power Consumption | <3.7 Watts |
| Dimensions | 26.1W X 94.9D X 144.3H Mm |
| Operating Humidity | 5% To 95% Non-condensing |
| Business Type | Supplier, Retailer, Trader, Distributor |
| Operating Temperature | -40 To 70 DegreeC |
| Weight | 1120 Grams |
| Dimensions | 74 X 140 X 170 Mm |
| Operating Humidity | 5% To 95% Non-condensing |
| Ethernet Standard | IEEE 802.3 For 10Base-T, IEEE 802.3u For 100Base-TX, IEEE 802.3x For Flow Control |
| IP Rating | IP-30 |
IES-1142P is a din-rail unmanaged Ethernet switch with 14x10/100Base-T(X) and 2x100Base-FX in SFP ports. IES-1142P supports redundant power inputs. The wide operating temperature range from -40°C to 70°C can satisfy most of operating environments.
Additional Information:
- Item Code: IES-1142P
- Production Capacity: 100 Pieces
- Delivery Time: Stock Ready
- Packaging Details: Comes in Corrugated Box.
| Business Type | Supplier, Retailer, Trader, Distributor |
| Operating Temperature | -40 To 70 DegreeC (-40 To 158 DegreeF) |
| Weight | 1060 Grams |
| Dimensions | 74.3(W)x109.2(D)x153.6(H) Mm |
| Operating Humidity | 5% To 95% Non-condensing |
| Ethernet Standard | IEEE 802.3 For 10Base-T, IEEE 802.3u For 100Base-TX, IEEE 802.3x For Flow Control |
| IP Rating | IP-30 |

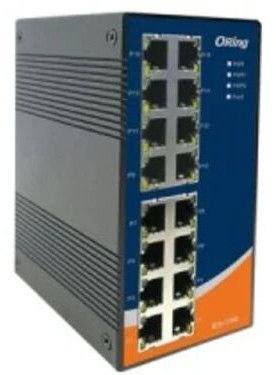

IES-1160 is the unmanaged Ethernet switch with 16x10/100Base-T(X) port. IES-1160 support redundant power inputs, relay output alarm, and surge protection. The wide operating temperature range from -40°C to 70°C can satisfy most of operating environments. Especially, IES-1160 features dual different redundant DC power inputs, two DC power inputs are on terminal block to avoid any unexpected fails on power on. Thus, IES-1160 could guarantee a non-stop operation. Therefore, the switch is one of the most reliable choice for highly-unmanaged Ethernet application.
Additional Information:
- Item Code: IES-1160
- Production Capacity: 100 Pieces
- Delivery Time: Stock Ready
- Packaging Details: Comes in Corrugated Box
| Business Type | Supplier, Retailer, Trader, Distributor |
| Operating Temperature | -40 To 70°C |
| Switch Type | Managed |
| Number Of Ports | 12 Ports |
| Port Speed | 10/100/1000 Mbps |
| Mounting Type | DIN Rail |
| Power Consumption | 9 Watts |
| Fiber Ports | 4 Fiber Ports |
| Redundancy Features | Ring Topology |
| Dimensions | 96.4x108.5x154 Mm |

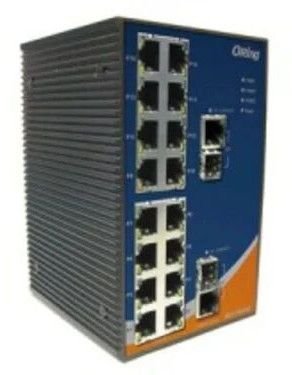

IES-1162GC is the unmanaged Ethernet switch with 16x10/100Base-T(X) and 2xGigabit Combo port Ethernet Switch. IES-1162GC supports redundant power inputs, relay output alarm, and surge protection. The wide operating temperature, range from -40 to 70°C, can satisfy most of harsh operating environments.
Additional Information:
- Item Code: IES-1162GC
- Production Capacity: 100 Pieces
- Delivery Time: Stock Ready
- Packaging Details: Comes in Corrugated Box.
| Business Type | Supplier, Retailer, Trader, Distributor |
| Weight | 328 Grams |
| Brand Name | Oring |
| Color | Black |
| Type | Rugged |
| Operating Temperature | -20 To 60 DegreeC |
| Device Type | Ethernet Switches |
| Power Consumption | 3.6 Watts Max. |
| Dimensions | 41 X 83.98 X 115 Mm |
| Operating Humidity | 5% To 95% Non-condensing |
| Business Type | Supplier, Retailer, Trader, Distributor |
| Weight | 383 Grams |
| Brand Name | Oring |
| Color | Black |
| Buffer Size | 448K Bits |
| Operating Temperature | -40 To 75°C |
| Area Network Type | LAN Capable |
| Dimensions | 41mm (W) X 90mm (D) X 95mm (H) |
| Operating Humidity | -40 To 85°C |
Overview
IES-180B is unmanaged Ethernet switch with 8x10/100Base-T(X) ports. With very compact size of housing, you can install IES-180B easily. In addition, IES-180B is with rigid IP-30 housing design and can operate under harsh environment. The extended operating temperature range from -40 to 75°C is ready and can satisfy most requirement of operation.
Features
-
- Supports 8 ports 10/100 Base-T(X)
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports store and forward transmission
- Supports flow control
- Compact size for easily installation
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
Additional Information:
- Item Code: IES-180B
- Production Capacity: 100 Pieces
- Delivery Time: Stock Ready
- Packaging Details: Comes in Corrugated Box.
| Business Type | Supplier, Retailer, Trader, Distributor |
| Brand Name | Oring |
| Operating Temperature | -40 To 75 DegreeC |
| Type | Rugged |
| Color | Black |
| Switch Type | Unmanaged |
| Number Of Ports | 5 Ports |
| Port Speed | 10/100 Mbps |
| PoE Support | Non PoE |
| Mounting Type | DIN Rail |
| Power Consumption | <3Watts |
| Fiber Ports | No Fiber Port |
| Protection Rating | IP65 |
IES-150B is an unmanaged Ethernet switch with 5x10/100Base-T(X) ports. With very mini size of housing, you can install IES-150B easily. In addition, IES-150B is with rigid IP-30 housing design and can operate under harsh environment. The extended operating temperature range from -40 to 75°C is ready and can satisfy most requirement of operation.
Features
-
- Supports 5 ports 10/100 Base-T(X)
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports store-and-forward transmission
- Supports flow control
- Compact size for easily installation
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
Additional Information:
- Item Code: IES-150B
| Business Type | Supplier, Retailer, Trader, Distributor |
| Operating Temperature | -40 To 75 DegreeC (-40 To 167 DegreeF) |
| Color | Black |
| Area Network Type | LAN Capable |
| Dimensions | 26x 103x 64 Mm |
| Operating Humidity | 5% To 95% Non-condensing |
| IP Rating | IP-40 |

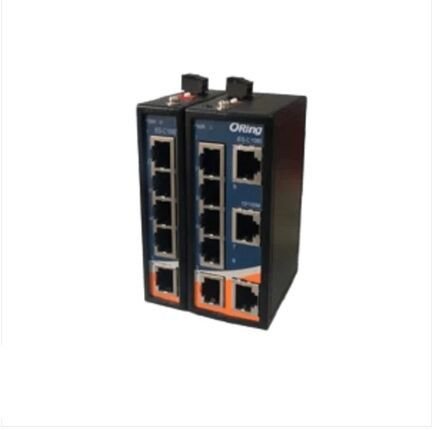

IES-C1050 series are unmanaged Ethernet switches with 5 x 10/100Base-TX ports . In addition, the wide operating temperature range from -40°C to 75°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for Ethernet application.
Features
- Supports 5 x 10/100Base-TX ports, RJ45 connector
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- IP40 protection class
- -40 to 75°C wide operating temperature range
- DIN-Rail mounting enabled
Additional Information:
- Item Code: IES-C1050
- Production Capacity: 100 Pieces
- Delivery Time: Stock Ready
- Packaging Details: Comes in Corrugated Box.
| Business Type | Supplier, Retailer, Trader, Distributor |
| Operating Temperature | -40 To 75 DegreeC (-40 To 167 DegreeF) |
| Area Network Type | LAN Capable |
| Dimensions | 43.5 X 103 X 64mm |
| Operating Humidity | 5% To 95% Non-condensing |
| Ethernet Standard | IEEE 802.3 For 10Base-T IEEE 802.3u For 100Base-TX IEEE 802.3x For Flow Control |
| IP Rating | IP-40 |
IES-C1080 series are unmanaged Ethernet switches with 8 x10/100Base-TX RJ45 ports. In addition, the wide operating temperature range from -40°C to 75°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for Ethernet application
Additional Information:
- Item Code: IES-C1080
- Production Capacity: 100 Pieces
- Delivery Time: Stock Ready
- Packaging Details: Comes in Corrugated Box.
| Business Type | Supplier, Retailer, Trader, Distributor |
| Color | Black |
| Operating Temperature | -40 To 75 DegreeC (-40 To 167 DegreeF) |
| Weight | 889 Grams |
| Ports | 8 Port |
| Switch Speed | 10/100/1000 Mbps |
| PoE Support | PoE |
| Area Network Type | LAN Capable |
| Housing Material | Industrial Metal |
| Warranty | 5 Year |
| IP Rating | IP-30 |
| Ethernet Standard | IEEE 802.3 For 10Base-T IEEE 802.3u For 100Base-TX And 100Base-FX IEEE 802.3ab For 1000Base-T IEEE 8 |
| Operating Humidity | 5% To 95% Non-condensing |
| Business Type | Supplier, Retailer, Trader, Distributor |
| Weight | 410 Grams |
| Brand Name | Oring |
| Color | Black |
| Type | Rugged |
| Operating Temperature | -40 To 70 DegreeC |
| Area Network Type | LAN Capable |
| Power Consumption | 6.4 Watts |
| Dimensions | 26.1 (W) X 94.9 (D) X 144.3(H) Mm |
| Operating Humidity | 5% To 95% Non-condensing |
Overview
IGS-1042GPA is an unmanaged Ethernet switch. IGS-1042GPA has 4x10/100/1000Base-T(X) and 2x100/1000Base-X SFP port. The SFP port optical network speed can be set by changing the settings of the DIP-Switch below. IGS-1042GPA supports wide range 12~48VDC power inputs. The wide operating temperature range from -40°C to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for Ethernet application.
Features
- Provide 4x10/100/1000Base-T(X) and 2x100/1000Base-X SFP ports
- Supports Jumbo frame up to 9KBytes
- SFP port support 100Base-FX and 1000Base-X spee
- Support auto-negotiation and auto-MDI/MDI-X
- Support store and forward transmission
- Supports flow control
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
Additional Information:
- Item Code: IGS-1042GPA
- Production Capacity: 100 Pieces
- Delivery Time: Stock Ready
- Packaging Details: Comes in Corrugated Box
| Business Type | Supplier, Retailer, Trader, Distributor |
| Type | Rugged |
| Operating Temperature | -40 To 70 DegreeC |
| Weight | 420g |
| Brand Name | Oring |
| Color | Black |
| Area Network Type | LAN Capable |
| Device Type | Ethernet Switch |
| Power Consumption | 5.5 Watts |
| Dimensions | 26.1(W) X 94.9(D) X 144.3(H) Mm |
| Operating Humidity | 5% To 95% Non-condensing |
| Business Type | Supplier, Retailer, Trader, Distributor |
| Brand Name | Oring |
| Color | Black |
| Type | Rugged |
| Operating Temperature | -40 To 75 DegreeC (-40 To 167 DegreeF) |
| Device Type | Ethernet Switch |
| Area Network Type | LAN Capable |
| Dimensions | 26x 103x 64 Mm |
Overview
IGS-C1050 series are unmanaged gigabit Ethernet switches with 5 x 10/100/1000Base-T(X) ports . In addition, the wide operating temperature range from -40°C to 75°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for Ethernet application.
Features
- Supports 5 x 10/100/1000Base-T(X) ports
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- IP40 protection class
- -40 to 75°C wide operating temperature range
- DIN-Rail mounting enable
Additional Information:
- Item Code: IGS-C1050
- Production Capacity: 100 Pieces
- Delivery Time: Stock Ready
- Packaging Details: Comes in Corrugated Box.
| Business Type | Supplier, Retailer, Trader, Distributor |
| Model Number | XA-82-2 |
| Total PoE Budget | 240 W (Max) |
| Number Of Ports | 8 |
| Area Network Type | LAN |
| POE Standard | IEEE 802.3at & 802.3af |
| Operating Temperature | -30 To 65°C |
| Width | 58x112x114mm (HHxWWxDD) |
| LAN Ports | 8 X 10/100/1000 Mbps (MDI/MDIX) |
| SFP Ports | 2 X SFP |
| POE Ports | LAN Port 1 – 8 (PoE Out) |
| POE Budget Per Port | 30 W (Max) |
| MAC Address Table Entries | 2000 |
| Jumbo Frame | 9216 Bytes |
Additional Information:
- Item Code: XA-82-2
- Production Capacity: 1000
- Delivery Time: READY STOCK
- Packaging Details: COMES IN CORRUGATED BOX
| Business Type | Supplier, Retailer, Trader, Distributor |
| Country of Origin | Made In India |
| Weight | 295 Gms* |
| Application | Industrial |
| PoE Standard | IEEE 802.3af |
| Number Of Ports | 8 Ports |
| Data Bits | 9216 Bytes |
| Model Name/Number | XB-82-2 |
| Storage Temperature | -30-65 DEGREE |
| Number Of Ports/Pins | 8 |
| Warranty | 2 YEAR |
| Operating Humidity | 10 - 90% (non-condensing) |
| Range | XB-82-2 |
| Power | 5.5 W |
Additional Information:
- Item Code: XB-82-2
- Production Capacity: 1000
- Delivery Time: READY STOCK
- Packaging Details: COMES IN CORRUGATED BOX
| Business Type | Supplier, Retailer, Trader, Distributor |
| Color | Blue |
| Dimension | 30x112x100mm (HHxWWxDD) |
| Weight | 350 Gms |
| Brand Name | SILBO |
| Model Number | XD-50-1 |
| Device Type | Unmanaged Ethernet Switch |
| Ports | 5 Port |
| Number Of Ports | 5-Port Unmanaged Switches |
| Switch Speed | 10/100 Mbps |
| Primary Port Type | 10/100 |
| PoE Support | No PoE |
| Network Type | LAN |
| Power Consumption | <5 W |
| Warranty | 2 YEAR |
| DC Power Adapter | 9-30 Vdc |
Additional Information:
- Item Code: XD-50-1
- Production Capacity: 1000
- Delivery Time: READY STOCK
- Packaging Details: COMES IN CORRUGATED BOX
| Business Type | Supplier, Retailer, Trader, Distributor |
| Ports | 24 Port |
| Number Of Ports | 24 |
| Switch Type | Managed |
| Switch Speed | 10/100/1000 Mbps |
| Uplink Ports | 4 SFP |
| PoE Support | PoE |
| Placement | Rackmount |
| Management | SNMP |
| Warranty | 2 Year |
| Fiber | 4 X SFP Ports |
| IEEE 802.3 Series Standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
SWM280 PoE+ managed switch
The SWM280 is a powerful L2 managed switch with L3 features for advanced network control. Designed for high-performance connectivity, this 24-port switch combines 12 PoE+ ports, 12 Gigabit Ethernet ports, and 4 SFP ports. The PoE+ supply up to 30 W per port and a total power budget of 300 W. The SWM280 supports PROFINET & other industrial protocols, enabling flexibility over management and power supply.
| Business Type | Supplier, Retailer, Trader, Distributor |
| Operating Temperature | -40°C To 75°C |
| Switch Type | Unmanaged |
| Number Of Ports | 5 Ports |
| Port Speed | 10/100 Mbps |
| PoE Support | Non PoE |
| Mounting Type | DIN Rail |
| Uplink Ports | No Uplink |
| Fiber Ports | No Fiber Port |
| Protection Rating | IP30 |
| Redundancy Features | No Redundancy |
| Speed | 1000 Mbps |
Ethernet
-
ETH
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
-
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Performance Specifications
-
Bandwidth (Non-blocking)
10 Gbps
-
Packer buffer
128 KB
-
MAC address table size
2K entries
-
Jumbo frame support
9216 bytes
Power
-
Connector
2-pin industrial DC power socket
-
Input voltage range
9 – 30 VDC
-
PoE (passive)
Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
-
Power consumption
Idle: 0.3 W / Max: 2.3 W
Physical Interfaces
-
Ethernet
5 x RJ45 ports, 10/100/1000 Mbps
-
Status LEDs
1 x Power LED, 10 x ETH status LEDs
-
Power
1 x 2-pin industrial DC power socket
-
Other
1 x Grounding screw
Physical Specification
-
Casing material
Anodized aluminum housing and panels
-
Dimensions (W x H x D)
113.1 x 27.4 x 80.5 mm
-
Weight
174 g
-
Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
Operating Environment
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
5% to 95% non-condensing
-
Ingress Protection Rating
IP30
Regulatory & Type Approvals
-
Regulatory
CE, UKCA, FCC, IC, CB, RCM, CITC, REACH, RoHS, WEEE
EMC Emissions & Immunity
-
Standards
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
-
ESD
EN 61000-4-2:2009
-
Radiated Immunity
EN IEC 61000-4-3:2020
-
EFT
EN 61000-4-4:2012
-
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
-
CS
EN 61000-4-6:2014
Safety
-
Standards
CE: EN IEC 62368-1:2020 + A11:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
| Business Type | Supplier, Retailer, Trader, Distributor |
| Network Type | 4G LTE |
| Interface Type | Ethernet |
| Number Of Ports | 5 |
| Unique Networking Features | DURABLE Industrial-grade Design For Harsh Environments |
| IP Rating | IP30 |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP And ICMP Link Inspection |
| ESD Protection | DDOS Prevention, SYN Flood Protection, SSH Attack Prevention, HTTP/HTTPS Attack Prevention, Port Sc |
| Dimensions | 100 X 30 X 85 Mm |
