Twitter| Business Type | Exporter, Supplier, Distributor, Importer |
| Brand Name | BELDEN |
| Conductor Material | Copper |
| Inner Material | Copper |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |
Product Details

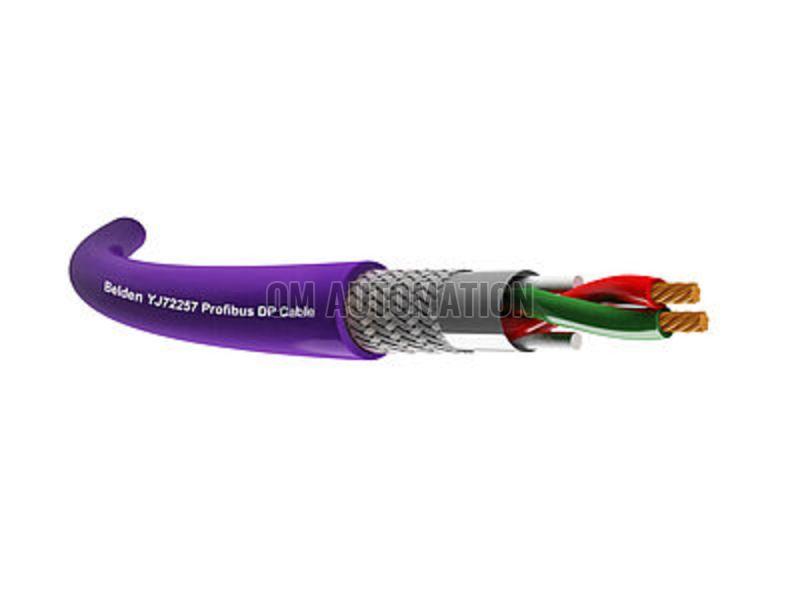

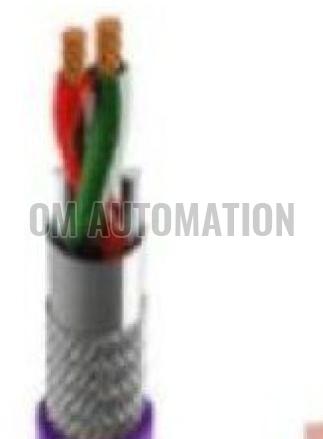

Construction:
Design: 1 Pair 22 AWG
Conductor: Stranded Bare Copper
Insulation: Foam PE
Shielding: AL/PET-Mylar & Tinned Copper Braid shield
Outer Jacket: PVC - Polyvinyl Chloride
Mechanical Properties:
Operating temperature: -20°C to 70°C
Electrical Properties:
Voltage Rating: 300V
Impedance (3 MHz – 20 MHZ): 150 ± 20 % Ohms
Attenuation (16 MHz): 5.40 dB/100mtr (Max.)
Velocity of Propagation: 78% (Nom.)
Target Application:
Suitable to Operate sensors and actuators via a centralised controller in Plant automation applications, Chemical Industries, Oil, gas and pharma industries.
|
low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
