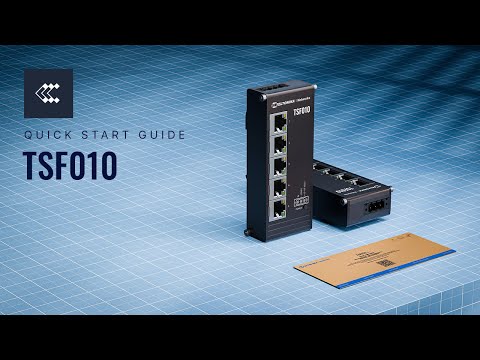

TELTONIKA - TSF010 FLAT ETHERNET SWITCH

ETHERNET

• ETHERNET

  5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

• IEEE 802.3 series standards

  802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

PERFORMANCE SPECIFICATIONS

• Bandwidth (Non-blocking)

  10 Gbps

• Packer buffer

  128 KB

• MAC address table size

  2K entries

• Jumbo frame support

  9216 bytes

POWER

• Connector

  3-pin industrial DC power socket

• Input voltage range

  7 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax,

  surge protection: min 64.4V/max 71.2V breakdown voltage,

  93.6V maximum reverse voltage @4.3A maximum reverse surge current

• Power consumption

  Idle: 1 W / Max: 1.5 W

PHYSICAL INTERFACES

• Ethernet

  5 x RJ45 ports, 10/100 Mbps

• Status LEDs

  1 x Power LED, 10 x ETH status LEDs

• Power

  1 x 3-pin industrial DC power socket

• Grounding

  Grounding terminal on power connector

PHYSICAL SPECIFICATION

• Casing material

  Anodized aluminum housing and panels

• Dimensions (W x H x D)

  113 x 28 x 50 mm

• Weight

  142 g

• Mounting options

  Integrated DIN rail bracket

OPERATING ENVIRONMENT

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  5% to 95% non-condensing

• Ingress Protection Rating

  IP30
