Ethernet

• ETH

  4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

• IEEE 802.3 series standards

  802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Performance Specifications

• Bandwidth (Non-blocking)

  8 Gbps

• Packer buffer

  128 KB

• MAC address table size

  2K entries

• Jumbo frame support

  9216 bytes

Power

• Connector

  2-pin industrial DC power socket

• Input voltage range

  7 - 57 VDC; 9 - 40 VAC

• PoE (passive)

  Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

• Power consumption

  Idle: 0.26 W / Max: 1.44 W

Physical Interfaces

• Ethernet

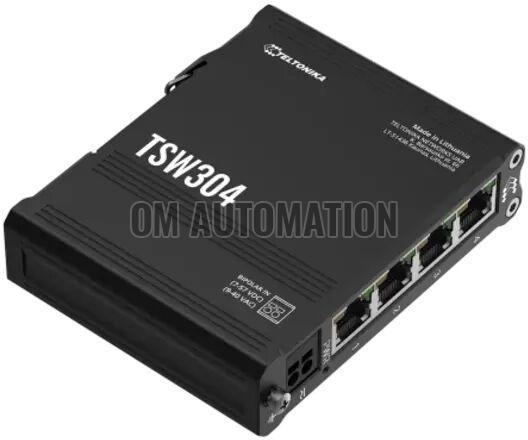

  4 x RJ45 ports, 10/100/1000 Mbps

• Status LEDs

  8 x ETH status LEDs, 1 x Power LED

• Power

  1 x 2-pin industrial DC power socket

• Other

  1 x Grounding screw

Physical Specification

• Casing material

  Aluminium housing

• Dimensions (W x H x D)

  102 x 25 x 81.5 mm

• Weight

  210 g

• Mounting options

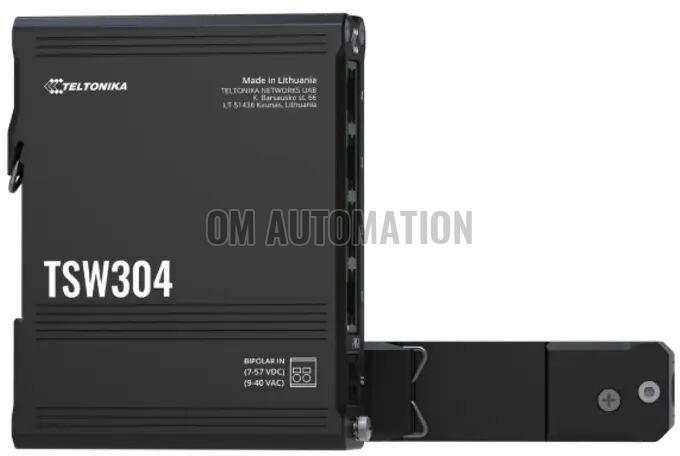

  Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  5% to 95% non-condensing

• Ingress Protection Rating

  IP30

Regulatory & Type Approvals

• Regulatory

  CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

Safety

• Standards

  EN IEC 62368-1:2020+A11:2020

  IEC 60068-2-6:2007 Environmental testing - Part 2-6

  IEC 60068-2-27:2008 Environmental testing - Part 2-27

  IEC 60068-2-31:2008 Environmental testing - Part 2-31
